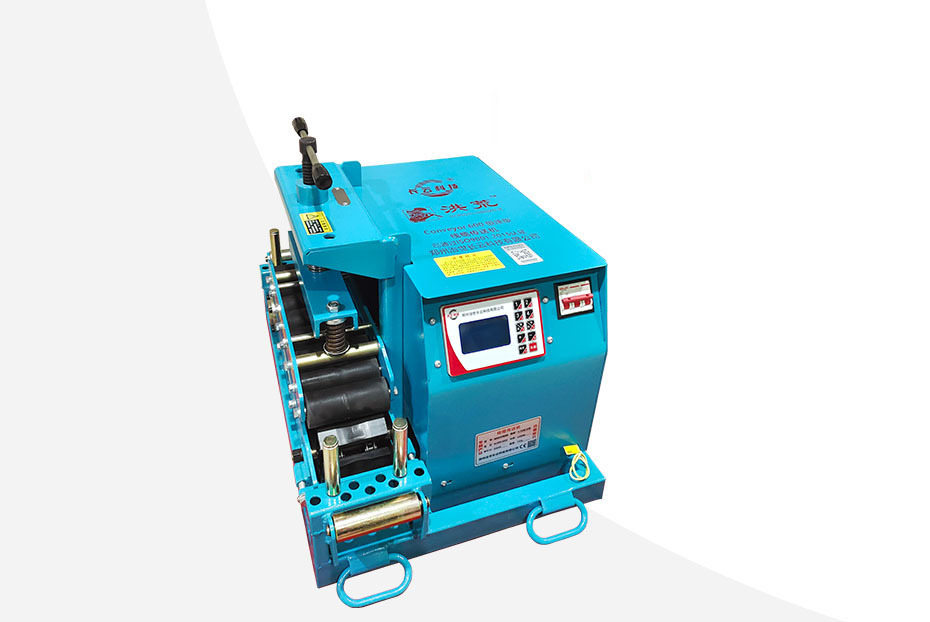

Heavy-duty 80 kN electric capstan winch with an 11 kW copper-core motor, 0–20 m/min stepless speed control, remote operation, and automatic power-off braking.
The Capstan Winch Power Arrow 8 is a heavy-duty electric cable pulling winch engineered for ultra-high-voltage transmission, long-distance cable installation, and major infrastructure projects. Its 80 kN pulling force, 11 kW copper-core motor, stepless speed control, and automatic power-off braking provide powerful, controlled, and reliable operation.
Applications:
Power Engineering
Underground cable installations in pipelines, utility tunnels, and cable trenches with precise tension control.
Transportation & Energy Infrastructure
High-speed rail stations, rail transit systems, new energy power plants, and large oil refineries.
Large Infrastructure Projects
Main power cable installation for nuclear power plants, hydropower stations, and high-rise buildings.
Long-Distance Power Transmission
Direct-burial cable laying and overhead cable-tray installation with controlled pulling force.
Power Construction
Efficient deployment of power cables, fiber-optic cables, and wiring systems across construction sites.
New Energy
Cable installation for wind, hydropower, and solar energy projects.
| Model | Power Arrow 8 |
| Maximum Pulling Force | 80 kN |
| Speed Range | 0–20 m/min (stepless adjustment) |
| Motor Power | 11 kW premium copper-core motor |
| Power Supply | AC 380 V |
| Control Methods | Control panel and wireless remote control |
| Safety Feature | Automatic braking when power is cut off |
| Dimensions (L×W×H) | 125 × 75 × 55 cm |
| Net Weight | 550 kg |
| High Pulling Capacity | Delivers up to 80 kN for demanding cable pulling projects. |
| Stepless Speed Control | Provides precise control across the 0–20 m/min range. |
| Dual Control | Supports local panel operation and wireless remote control. |
| Power-Off Braking | Stops the winch automatically during a power interruption. |
| Heavy-Duty Transmission | Thickened wear-resistant drum, anti-vibration shaft drive, and reinforced gearbox. |
| Typical Applications | Ultra-high-voltage power lines; long-distance communication cable installation; offshore wind-farm cabling; major infrastructure projects. |
80 kN.
Yes. The machine provides 0–20 m/min (stepless adjustment) for controlled operation.
Ultra-high-voltage power lines; long-distance communication cable installation; offshore wind-farm cabling; major infrastructure projects.
