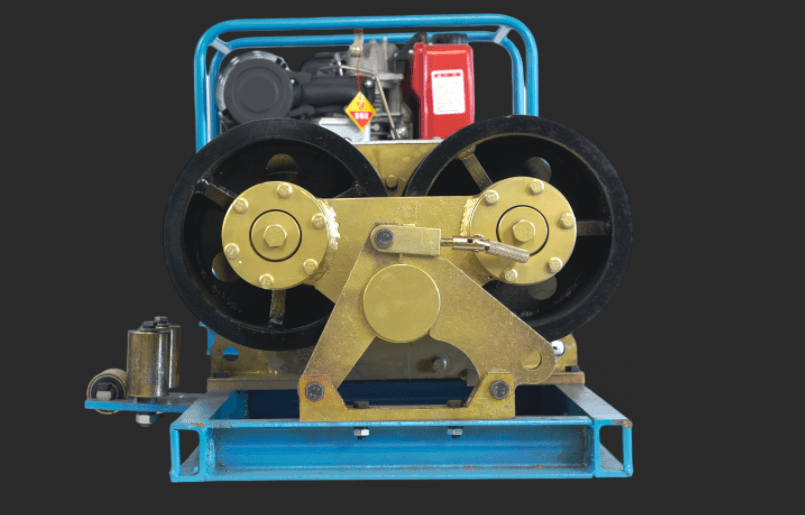

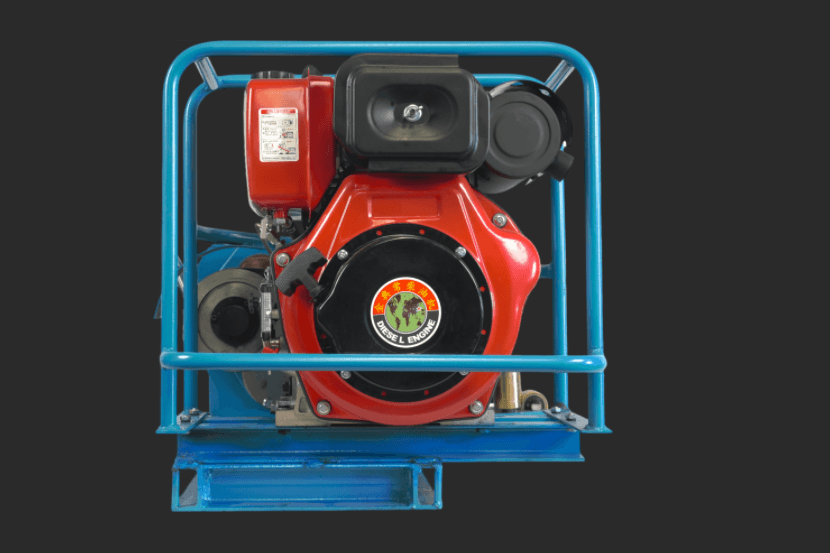

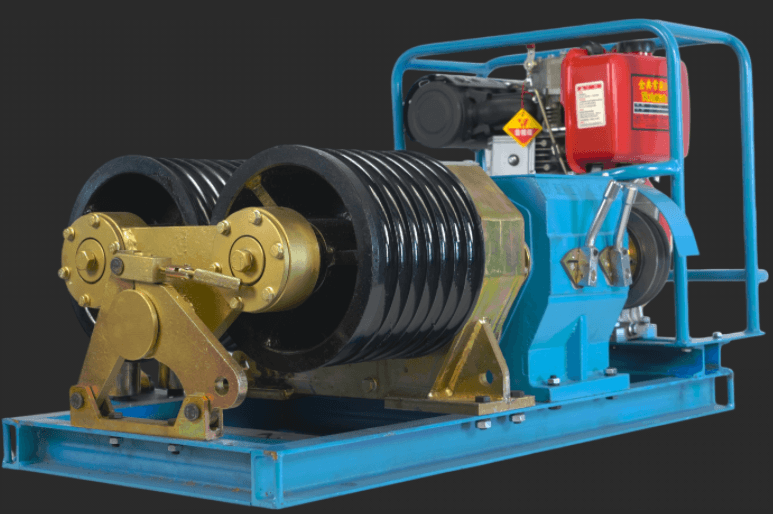

Torque Master 5 Diesel Capstan Winch: rated pulling force 50 kN at 4.5 m/min, 4 forward and 2 reverse gears, shaft drive and mechanical brake. Dimensions 110 x 58 x 58 cm; net weight 157 kg.
The Capstan winch Torque Master 5 Diesel version is a heavy-duty cable pulling machine featuring a distinctive teal body with black/white engine components. Designed for challenging environments, it delivers 50 kN rated pulling force through reliable shaft transmission, making it ideal for mountainous and remote construction projects.
Applications:
Power Engineering
Underground cable installations in pipelines, utility tunnels, and cable trenches with precise tension control.
Transportation & Energy Infrastructure
High-speed rail stations, rail transit systems, new energy power plants, and large oil refineries.
Large Infrastructure Projects
Main power cable installation for nuclear power plants, hydropower stations, and high-rise buildings.
Long-Distance Power Transmission
Direct-burial cable laying and overhead cable-tray installation with controlled pulling force.
Power Construction
Efficient deployment of power cables, fiber-optic cables, and wiring systems across construction sites.
New Energy
Cable installation for wind, hydropower, and solar energy projects.
| Model | Torque Master 5 Diesel version |
| Power System | Diesel |
| Rated Pulling Force | 50 kN |
| Gears | 4 forward + 2 reverse |
| Forward Gear 1 | 50 kN at 4.5 m/min |
| Forward Gear 2 | 26 kN at 8.5 m/min |
| Forward Gear 3 | 20 kN at 11 m/min |
| Forward Gear 4 | 10 kN at 23 m/min |
| Reverse Gear 1 | 3.5 m/min |
| Reverse Gear 2 | 9 m/min |

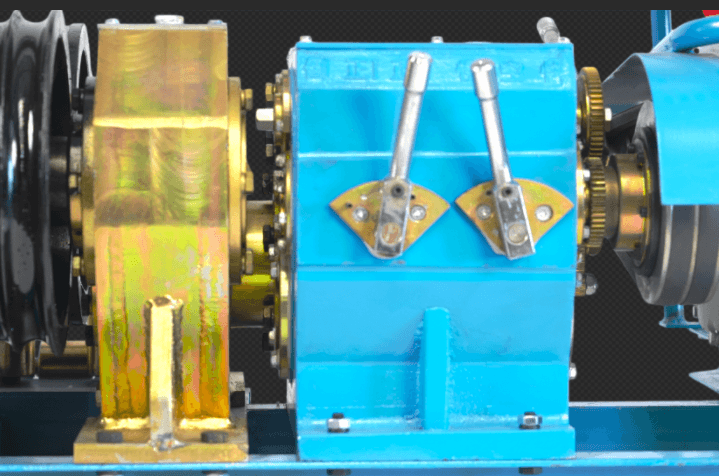

| Control Method | Gearbox |
| Braking Method | Mechanical brake |
| Transmission | Shaft drive |
| Dimensions | 110 x 58 x 58 cm |
| Net Weight | 157 kg |
Gear Performance
• Forward Gear 1: 50KN at 4.5m/min
• Forward Gear 2: 26KN at 8.5m/min
• Forward Gear 3: 20KN at 11m/min
• Forward Gear 4: 10KN at 23m/min
• Reverse Gear 1: 3.5m/min
• Reverse Gear 2: 9m/min
