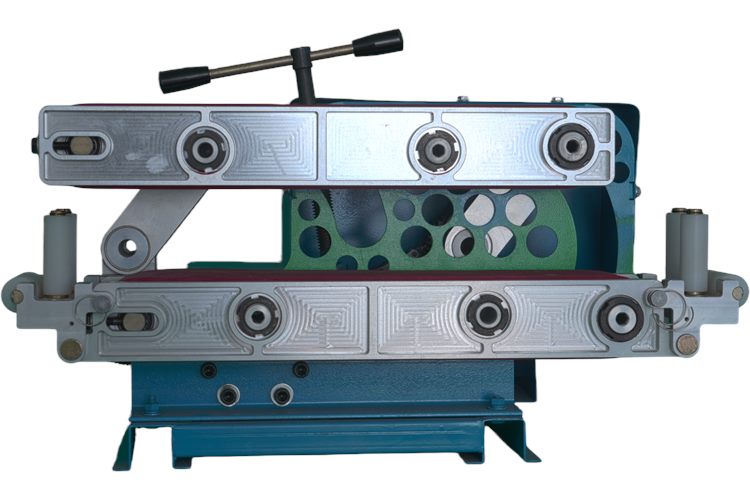

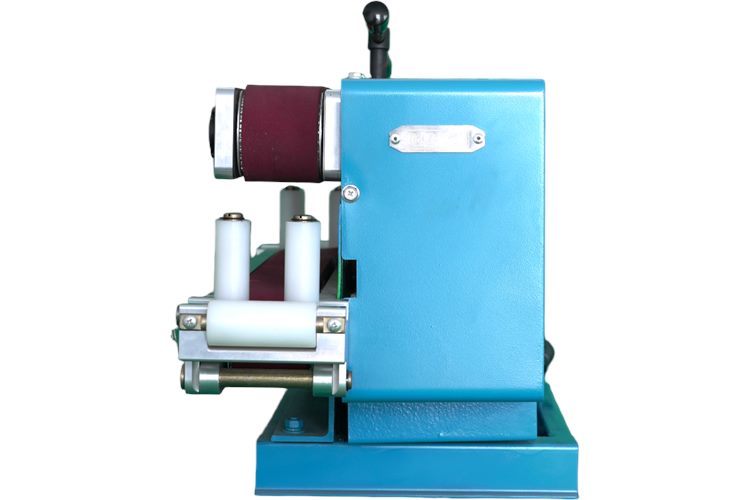

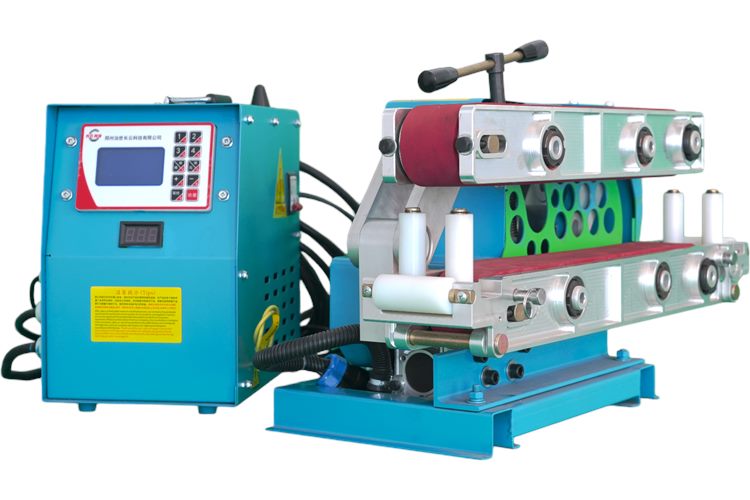

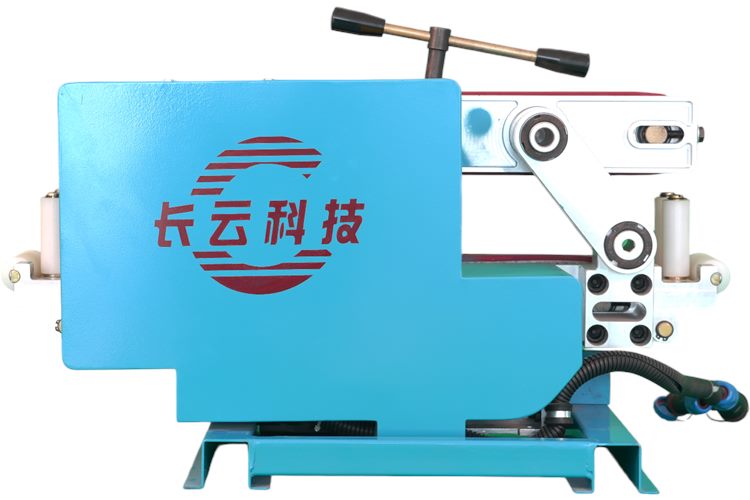

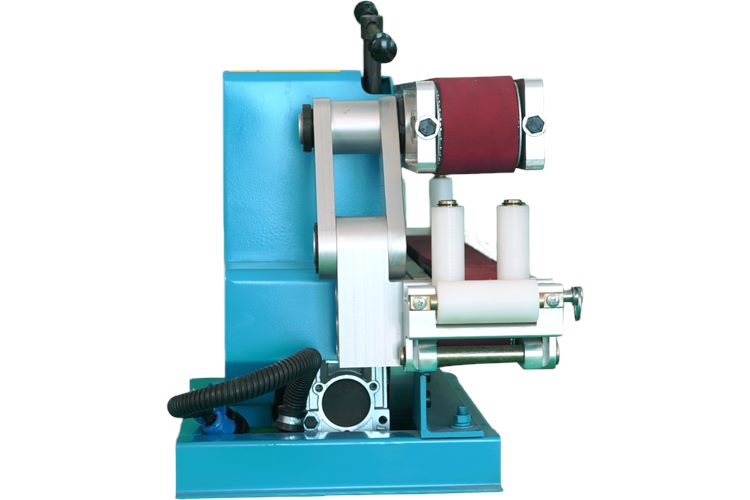

The Gecko Series Multi-layer Cable Tray Conveyor is a lightweight 785 W cable conveyor for 10–60 mm cables. Its 3–12 m/min speed range and flexible horizontal, overhead, or side mounting suit multi-layer cable trays and restricted spaces.
The Gecko Series Multi-layer Cable Tray Conveyor is a lightweight cable-handling unit designed for multi-layer trays, overhead routes, and restricted installation spaces. Its compact 785 W drive provides 1,400 N of rated tension for cables from 10 to 60 mm, with adjustable speed and flexible mounting configurations.
| Model | Gecko Series |
| Power Input | AC 220/380 V |
| Motor Power | 785 W |
| Speed Range | 3–12 m/min |
| Rated Tension | 1,400 N |
| Cable Diameter Range | 10–60 mm |
| Control Modes | Standalone or synchronized multi-unit control |
| Mounting Options | Horizontal, overhead, or side-mounted |
| Dimensions (L × W × H) | 67 × 27 × 39 cm including base frame |
| Net Weight | 29 kg suspended; 32 kg with base frame |

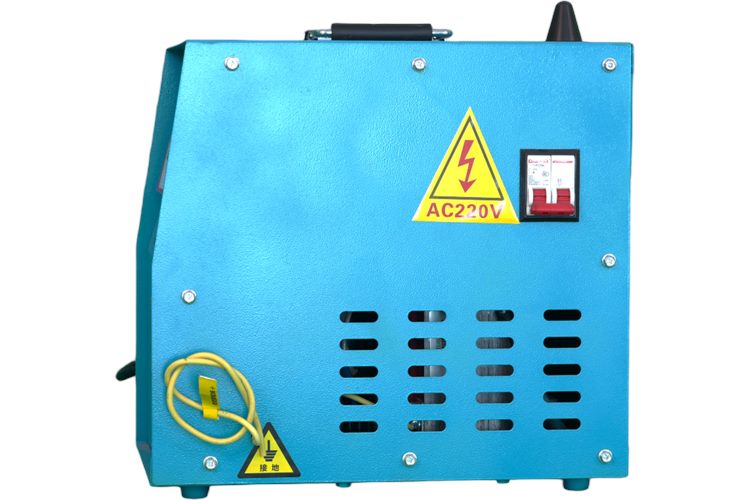

| Included Components | Control box, base-frame accessories, and suspension kit |
| Feature | How It Helps |
|---|---|
| Lightweight Modular Design | A 29 kg suspended unit is easier to install and reposition along elevated or layered cable trays. |
| Flexible Mounting | Horizontal, overhead, and side-mounted configurations adapt to different tray layouts and work spaces. |
| Adjustable Speed | A 3–12 m/min range supports controlled handling across different cable types and installation conditions. |
| Multi-Unit Synchronization | Several conveyors can operate together to distribute force along longer or multi-layer routes. |
| Uniform Cable Pressure | Balanced contact helps maintain stable cable movement and reduce localized pressure. |
| Typical Applications |
|
It is designed for cable diameters from 10 to 60 mm.
It supports horizontal, overhead, and side-mounted configurations using the supplied base-frame and suspension accessories.
Yes. The control system supports standalone operation or synchronized multi-unit control.
The suspended unit weighs 29 kg, or 32 kg when used with the base frame.
