Model: LayPro 900 Double voltage
Power Supply: AC380V (standard)
Operating Voltage: AC380V

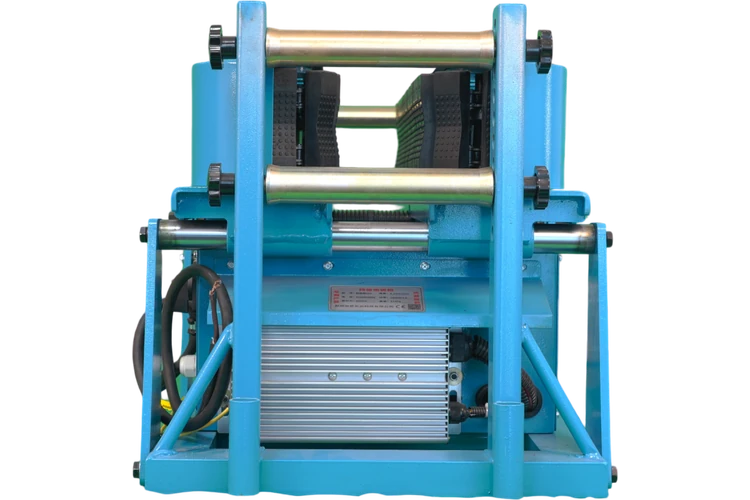

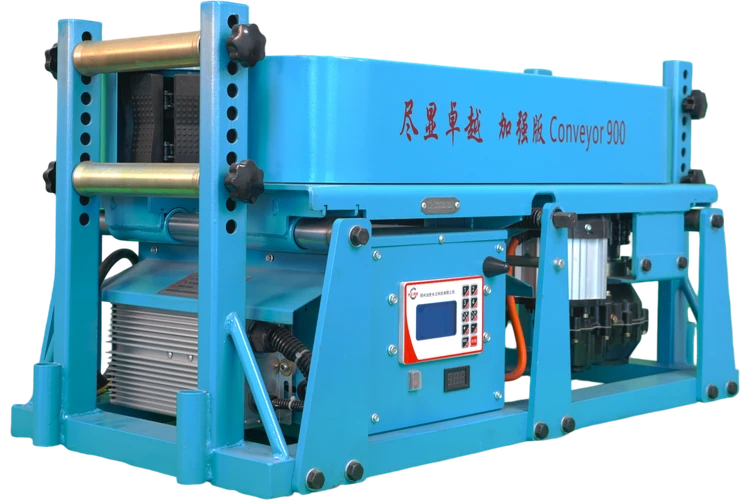

The Cable Conveyor is driven by electric motors, which transmit power to a set of rubber crawler tracks via a reduction gear mechanism. By adjusting the gap between the left and right tracks, the clamping force applied to the cable can be precisely controlled, thereby propelling the cable forward at a constant speed and ensuring a smooth, damage-free installation process.

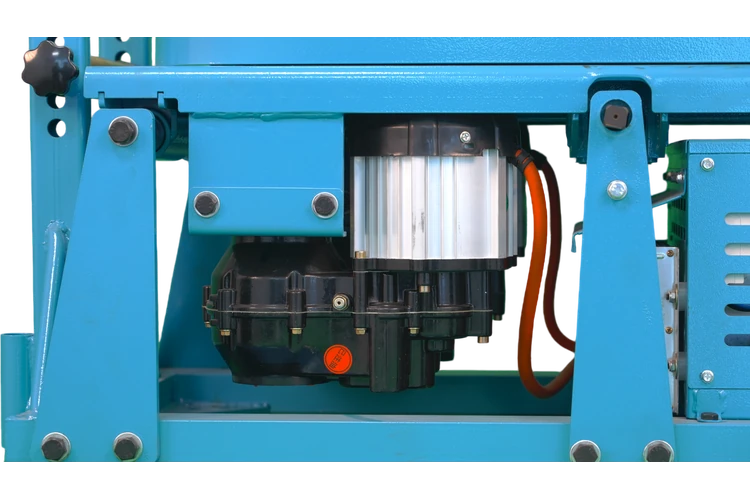

Driven by an electric motor, the cable conveyor transmits power to the rubber tracks or rollers through a reduction gearbox. The upper and lower tracks clamp the cable with adjustable pressure to generate stable friction, which pushes the cable forward at a constant speed. For long-distance laying, multiple units can work synchronously to provide uniform thrust, ensuring smooth and damage-free cable installation.
| Model | LayPro 900 Double voltage |
| Power Supply | AC380V/AC220V (standard) |
| Operating Voltage | AC380V/AC220V |
| Power | 1.8KW × 2 (dual motor) |
| Conveying Speed | 4-36m/min (optimal 16-26m/min in Gear 2-3) |
| Max Pulling Force | 8000N |
| Cable Diameter | 2-24cm |
| Dimensions | 106.4X57X53cm |
| Weight | 214kg |
Power Engineering: Cable laying projects in underground pipelines, integrated utility tunnels, cable trenches, or tunnels.
Transportation and Energy Infrastructure: Suitable for high-speed rail stations, rail transit systems, new energy power plants, and large oil refinery projects; cable laying for new projects and cable renovation for existing projects.
Large Infrastructure Projects: Laying main power cables for nuclear power plants, hydropower stations, and high-rise buildings.
Long-Distance Power Transmission: Suitable for on-site direct burial cable laying and overhead cable tray installation in long-distance power transmission projects.
Power Construction: Cable conveying, fiber optic cable conveying, and wire/cable conveying.
Dual-motor drive, high efficiency and labor saving: The thrust of a single machine is equivalent to the pulling force of 10 workers. Multiple machines working together can shorten the construction cycle by 65%.
Cable protection, safe and reliable: Equipped with flexible tracks or rubber rollers to prevent scratching or twisting of cables, and built-in overload protection effectively reduces construction risks. Ensures high-quality laying.
Stable and controllable: The conveying speed can be steplessly adjusted within the range of 4–26 m/min, achieving smooth start and stop.
Flexible and portable: Compact size and light weight, easy to transport in narrow tunnels and manholes.
Features & Applications
Advanced Features

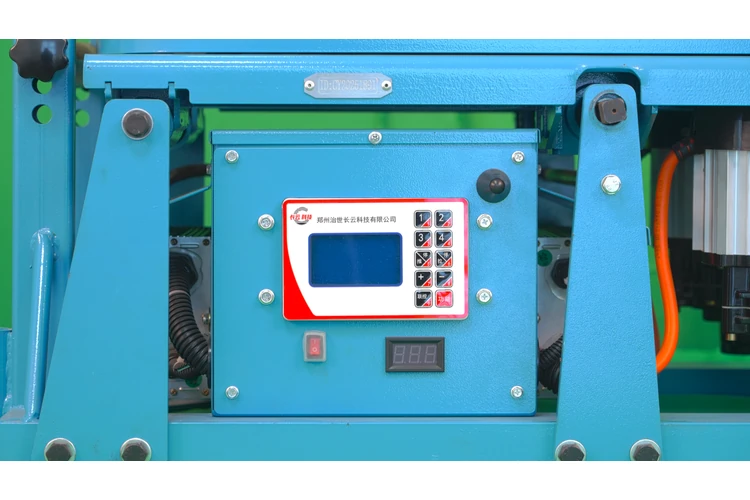

Precision Speed Control
Instant start/stop with wide speed range
Stable Operation
Smooth performance even at high speeds
Remote Management
Wireless control for convenient operation
Modular Design
Compact structure for confined spaces
Applications
Power transmission line construction
Underground cable/tunnel projects
Telecommunication infrastructure
Industrial cable installation
